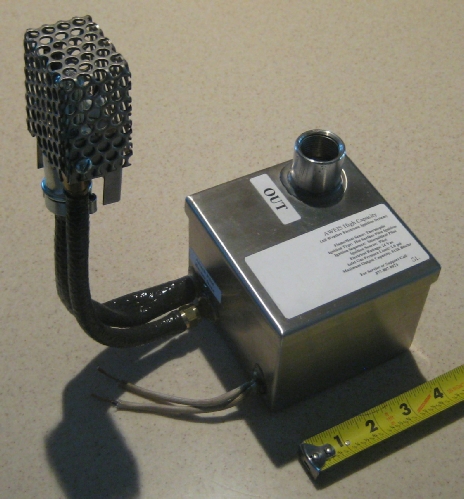

(All Weather Electronic Ignition System High Capacity)

AWEIS HC

Flame / Heat Sense: Thermopile
Ignition Type: Hot Surface Ignition (Glow Plug)
Ignition Sequence: Intermittent Pilot
Ignition Source: Pilot
Max. Btu Output: 512K Btu/hr
Inlet / Outlet Size: 3/4" FPT
Operating Voltage: 24 volts ac
Inlet Gas Press. Limit: 2 0 psi
Valve Enclosure Dim.: 4 ½" x 4 ½" x 5"(tall)

The AWEIS HC is a slightly larger version of the AWEIS SC in terms of physical dimension but delivers considerably more gas than its smaller counterpart.

With a maximum gas output of 512K Btu/hr – which is a very large amount of gas - it can be used in the larger fire features that require a considerable amount of gas to create the desired effect.
